从零构建 Logstash 日志监控闭环：Fluent Bit 旁路采集与 ECS 规范化落地#

引言：谁来监控日志中枢？#

在现代云原生与安全大数据架构中，Logstash 往往承担着多源异构日志汇聚、清洗、规整并输入 OpenSearch 的核心角色。然而，“灯下黑” 是许多平台架构师面临的共同痛点——我们用 Logstash 监控一切，却唯独没有监控 Logstash 自身。

当某个数据管道因为不合理的正则发生死锁、当上游网络抖动触发反压（Backpressure）、甚至当组件自身因 OOM 崩溃时，监控往往陷入盲区。

本方案旨在从零到一构建一套生产级的旁路监控闭环：通过轻量级 Agent 旁路采集 Logstash 自身的 JSON 日志，利用 OpenSearch Ingest Pipeline 将其对齐至工业级 ECS（Elastic Common Schema）规范，并最终落地于 OpenSearch 原生的 Data Stream（数据流）架构中。

一、轻量级旁路采集#

让 Logstash 将自身的日志发给自己，在逻辑上是一个 “循环论证” 的悖论：一旦 Logstash 假死，它就永远无法上报自己的故障。因此，生产环境必须坚持 旁路轻量化采集原则。

1.1 架构流程图#

flowchart LR
    subgraph LogSource["📦 日志来源"]
        LS["Logstash 实例\n/var/log/logstash/logstash-json.log\n/var/log/logstash/logstash-slowlog.json"]
    end

    subgraph Collection["🚚 旁路采集层 (Fluent Bit)"]
        FB["Fluent Bit Agent\nTail Input → Filter → OpenSearch Output"]
    end

    subgraph Storage["💾 存储与处理层 (OpenSearch)"]
        direction TB
        DS["Data Stream\nlog_siem_logstash_log"]
        Tpl["Index Template\n绑定 Ingest Pipeline"]
        Pipe["Ingest Pipeline\n字段重映射 / ECS 对齐"]
        BI["Back-Index\n.ds-log_siem_logstash_log-000001"]
    end

    subgraph Verify["🔍 验证层"]
        OD["OpenSearch Dashboards\nDiscover 查询验证"]
    end

    LS -->|" Tail 文件尾随 "| FB
    FB -->|" HTTP Bulk Create "| DS
    DS -->|" 自动匹配 "| Tpl
    Tpl -->|" 触发 "| Pipe
    Pipe --> BI
    BI --> OD

1.2 旁路采集核心原则#

原则	说明
零性能污染	Logstash 本身是重度消耗 CPU 和内存的 Java 进程。旁路采集必须采用 C 语言编写、高并发、极低内存占用的轻量级 Agent（如 Fluent Bit）进行日志监听，避免引入额外的资源竞争。
免多行解析	传统的 Java 堆栈日志（Stack Trace）由于多行断裂，需要 Agent 进行复杂的正则合并，这在生产环境中极易漏判且消耗 CPU。本方案要求 Logstash 必须原生以纯 JSON 格式向磁盘滚动输出标准日志与慢日志，实现开箱即用的结构化采集。
断点续传	Fluent Bit 的 Tail 插件通过 SQLite 数据库将文件偏移量持久化到本地磁盘，Agent 重启后能够从上次中断的位置继续采集，保障日志零丢失。

1.3 Fluent Bit 数据流处理#

flowchart LR
    subgraph Input["📥 输入 (Input)"]
        Tail["Tail Plugin\n监控文件偏移 (Checkpoint)"]
    end

    subgraph Filter["🔧 过滤 (Filter)"]
        Modify["Modify\n注入静态元数据"]
        Nest["Nest\n字段嵌套整理"]
    end

    subgraph Buffer["💾 缓冲与背压"]
        Mem["内存缓冲区\n限制 50MB"]
        Disk["磁盘辅助队列\n防止内存溢出"]
    end

    subgraph Output["📤 输出 (Output)"]
        OS["OpenSearch Plugin\nBulk API 异步批量写入"]
    end

    Tail --> Modify --> Nest --> Mem
    Mem -->|" 内存写满时 "| Disk
    Mem & Disk --> Output

二、 Logstash 日志输出配置#

2.1 为什么需要 JSON 格式日志#

Logstash 默认输出的日志为纯文本格式，包含多行堆栈跟踪信息，采集时需要复杂的正则表达式进行行合并与字段提取。这种方式存在以下问题：

CPU 开销大：正则匹配在多行场景下消耗大量计算资源
容易漏判：复杂的堆栈格式可能导致正则匹配失败
维护成本高：每次 Logstash 版本升级可能改变日志格式

本方案要求 Logstash 原生输出 结构化 JSON 日志，每条日志为一行完整的 JSON 对象，Fluent Bit 可以直接解析，无需额外处理。

2.2 Logstash JSON 日志配置#

在 logstash.yml 中配置日志输出格式：

# 日志路径
path.logs: /var/log/logstash
# 日志级别（生产环境建议 info）
log.level: info
# 日志格式：json（关键配置）
log.format: json

配置生效后，Logstash 将生成以下日志文件：

文件	说明	内容
`/var/log/logstash/logstash-json.log`	标准运行时日志	管道状态、插件事件、JVM 信息、错误堆栈等
`/var/log/logstash/logstash-slowlog.json`	慢日志	处理耗时超过阈值的事件记录

2.3 JSON 日志样例#

一条典型的 Logstash JSON 日志如下：

{
  "level": "ERROR",
  "loggerName": "logstash.codecs.json",
  "timeMillis": 1782311195698,
  "thread": "76f91f03e1c5829e7064a5b55f616fa1a4ffb616712ab0ad025e8909025df8b4-beatsHandler[T#3]",
  "pipeline.id": "winlogbeat",
  "plugin.id": "76f91f03e1c5829e7064a5b55f616fa1a4ffb616712ab0ad025e8909025df8b4",
  "logEvent": {
    "message": "JSON parse error, original data now in message field",
    "message": "Unrecognized token 'An': was expecting (JSON String, Number, Array, Object or token 'null', 'true' or 'false')\n at [Source: REDACTED (`StreamReadFeature.INCLUDE_SOURCE_IN_LOCATION` disabled); line: 1, column: 1]",
    "exception": "LogStash::Json::ParserError",
    "data": "An account was logged off.\n\nSubject:\n\tSecurity ID:\t\tN-1-5-20\n\tAccount Name:\t\tXXXXXX$\n\tAccount Domain:\t\tXXXXXXXX\n\tLogon ID:\t\t0x377640AE6\n\nLogon Type:\t\t\t3\n\nThis event is generated when a logon session is destroyed. It may be positively correlated with a logon event using the Logon ID value. Logon IDs are only unique between reboots on the same computer."
  }
}

三、 Fluent Bit 采集配置详解#

在前一节中，我们完成了 Logstash 的 JSON 日志配置。接下来，需要部署 Fluent Bit Agent 来旁路采集这些日志。

3.1 安装 Fluent Bit#

# 1. 添加 Fluent Bit 官方源
sudo sh -c 'curl https://packages.fluentbit.io/fluentbit.key | gpg --dearmor > /usr/share/keyrings/fluentbit-keyring.gpg'
codename=$(grep -oP '(?<=VERSION_CODENAME=).*' /etc/os-release 2>/dev/null || lsb_release -cs 2>/dev/null)
echo "deb [signed-by=/usr/share/keyrings/fluentbit-keyring.gpg] https://packages.fluentbit.io/ubuntu/$codename $codename main" | sudo tee /etc/apt/sources.list.d/fluent-bit.list

# 2. 安装 Fluent Bit（推荐 5.0.7）
sudo apt-get update
sudo apt-get install fluent-bit=5.0.7

# 3. 验证安装
/opt/fluent-bit/bin/fluent-bit --version

3.2 创建sqlite数据库路径#

sudo mkdir -p /var/lib/fluent-bit/

3.3 修改 `/lib/systemd/system/fluent-bit.service`#

[Unit]
Description=Fluent Bit
Documentation=https://docs.fluentbit.io/manual/
Requires=network.target
After=network.target

[Service]
Type=simple
EnvironmentFile=-/etc/sysconfig/fluent-bit
EnvironmentFile=-/etc/default/fluent-bit
Environment=FB_VERSION=5.0.7 # 注入Fluent Bit 版本环境变量
Environment=SERVICE_NAME=xxxxx # 注入服务名称环境变量
Environment=SERVICE_IP=xxxxxx # 注入服务 IP 环境变量
ExecStart=/opt/fluent-bit/bin/fluent-bit -c /etc/fluent-bit/fluent-bit-logstash.yaml # 指定 Logstash日志采集配置文件
Restart=always

[Install]
WantedBy=multi-user.target

3.4 Logstash日志采集配置文件#

创建 /etc/fluent-bit/fluent-bit-logstash.yaml：

---
service:
  http_server: "on"
  http_listen: "0.0.0.0"
  http_port: 2020
  Health_Check: "on"
  flush: 1
  daemon: off
  log_level: info
  parsers_file: parsers.conf
  plugins_file: plugins.conf

pipeline:
  inputs:
    - name: tail
      path: /var/log/logstash/logstash-json.log
      tag: test
      db: /var/lib/fluent-bit/logstash_tail.db
      path_key: logPath
      key: message

  filters:
      - name: modify
        match: '*'
        Add:
          - agent_name fluent-bit
          - agent_version ${FB_VERSION}
          - agent_host ${HOSTNAME}
          - service_ip ${SERVICE_IP}
          - service_name ${SERVICE_NAME}
          - service_host ${HOSTNAME}
        Rename:
          - date @timestamp
      - name: nest
        match: '*'
        operation: nest
        wildcard:
          - agent_name
          - agent_version
          - agent_host
        nest_under: agent
        remove_prefix: agent_
      - name: nest
        match: '*'
        operation: nest
        wildcard:
          - service_ip
          - service_name
          - service_host
        nest_under: service
        remove_prefix: service_
      - name: modify
        match: '*'
  outputs:
    - name: opensearch
      match: '*'
      host: 192.168.100.57
      port: 9200
      index: log_siem_logstash_log
      write_operation: create
      suppress_type_name: on
      generate_id: on
      http_user: xxxxx
      http_passwd: '*******'
      tls: on
      tls.verify: off

四、 Logstash日志ECS标准化#

完成 Fluent Bit 采集配置后，接下来需要将采集到的日志对齐至 ECS（Elastic Common Schema）规范，以便于后续的查询、分析和可视化。

4.1 组件化模板#

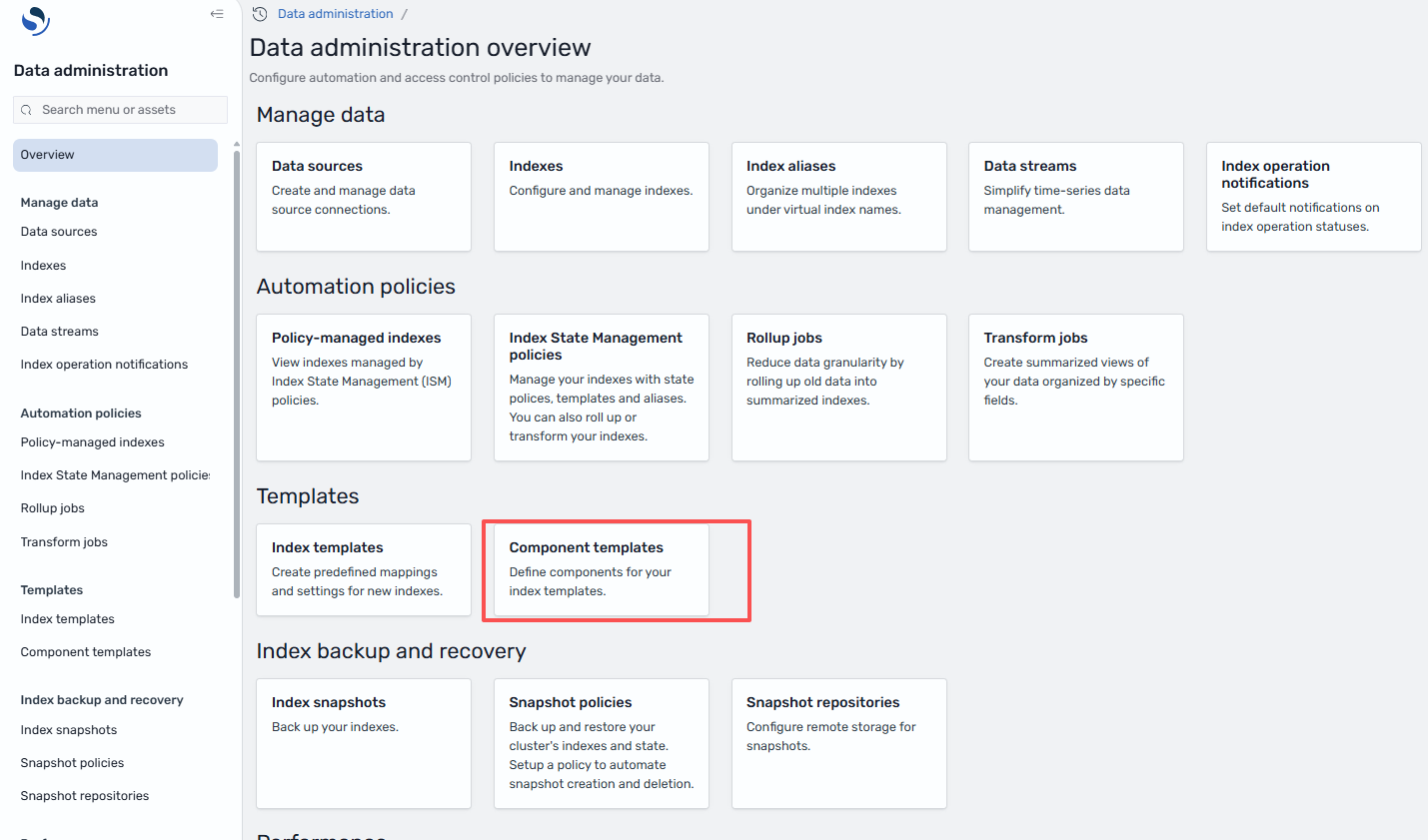

component-template-01

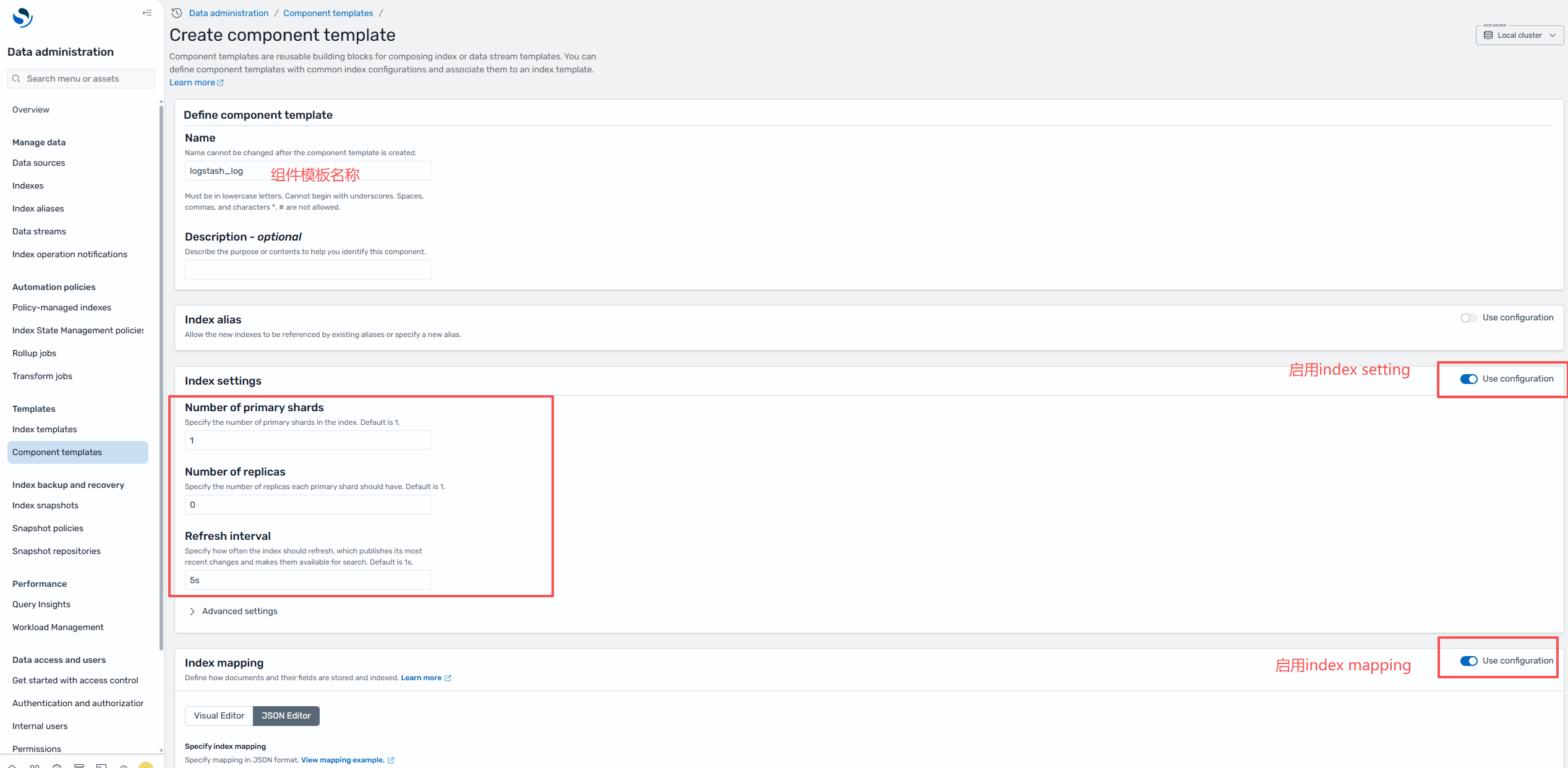

创建组件模板

Index settings & Advanced settings

{
  "index.number_of_replicas": "0",
  "index.default_pipeline": "logstash_log_default",
  "index.refresh_interval": "5s",
  "index.number_of_shards": "1"
}

参数	值	说明
`number_of_shards`	1	监控日志单分片即可满足查询需求
`number_of_replicas`	0	单节点的话需要设置副本为0
`refresh_interval`	5s	降低刷新频率，提升写入性能
`index.default_pipeline`	logstash_log_default	绑定 ingest pipeline

Index mappings

{
  "properties": {
    "logstash": {
      "type": "object",
      "properties": {
        "log": {
          "type": "object",
          "properties": {
            "plugin_id": {
              "type": "keyword"
            },
            "log_path": {
              "type": "keyword"
            },
            "module": {
              "type": "keyword"
            },
            "pipeline_id": {
              "type": "keyword"
            },
            "log_event": {
              "type": "flat_object"
            },
            "thread": {
              "fields": {
                "text": {
                  "type": "text",
                  "fields": {
                    "keyword": {
                      "ignore_above": 256,
                      "type": "keyword"
                    }
                  }
                }
              },
              "type": "keyword"
            }
          }
        }
      }
    },
    "agent": {
      "type": "object",
      "properties": {
        "host": {
          "type": "keyword"
        },
        "name": {
          "type": "keyword"
        },
        "version": {
          "type": "keyword"
        }
      }
    },
    "@timestamp": {
      "type": "date"
    },
    "ecs": {
      "type": "object",
      "properties": {
        "version": {
          "type": "keyword"
        }
      }
    },
    "log": {
      "type": "object",
      "properties": {
        "file": {
          "type": "object",
          "properties": {
            "path": {
              "type": "keyword"
            }
          }
        },
        "level": {
          "type": "keyword"
        }
      }
    },
    "data_stream": {
      "type": "object",
      "properties": {
        "namespace": {
          "value": "siem-mon",
          "type": "constant_keyword"
        },
        "type": {
          "value": "logs",
          "type": "constant_keyword"
        },
        "dataset": {
          "value": "logstash.log",
          "type": "constant_keyword"
        }
      }
    },
    "host": {
      "type": "object",
      "properties": {
        "ip": {
          "type": "ip"
        },
        "name": {
          "type": "keyword"
        }
      }
    },
    "message": {
      "type": "match_only_text"
    },
    "event": {
      "type": "object",
      "properties": {
        "ingested": {
          "type": "date"
        },
        "original": {
          "type": "keyword"
        },
        "kind": {
          "type": "keyword"
        },
        "created": {
          "type": "date"
        },
        "category": {
          "type": "keyword"
        },
        "type": {
          "type": "keyword"
        }
      }
    }
  }
}

4.2 OpenSearch Ingest Pipeline#

创建 Logstash 日志数据处理 Ingest Pipeline

PUT _ingest/pipeline/logstash_log_default
{
    "description": "Pipeline for parsing logstash node logs",
    "processors": [
      {
        "set": {
          "tag": "set_ecs_version_f5923549",
          "field": "ecs.version",
          "value": "8.17.0"
        }
      },
      {
        "set": {
          "tag": "set_event_category",
          "field": "event.category",
          "value": "process"
        }
      },
      {
        "set": {
          "field": "event.kind",
          "value": "event"
        }
      },
      {
        "set": {
          "tag": "set_event_ingested",
          "field": "event.ingested",
          "value": "{{_ingest.timestamp}}"
        }
      },
      {
        "rename": {
          "tag": "rename_message_to_event_original",
          "field": "message",
          "target_field": "event.original",
          "override_target": true,
          "ignore_missing": true
        }
      },
      {
        "json": {
          "tag": "parse_logstash_log",
          "field": "event.original",
          "target_field": "logstash.log",
          "if": "ctx.event?.original != null"
        }
      },
      {
        "convert": {
          "tag": "convert_logstash_log_timeMillis_to_string",
          "field": "logstash.log.timeMillis",
          "type": "string"
        }
      },
      {
        "date": {
          "tag": "parse_logstash_log_timeMillis",
          "field": "logstash.log.timeMillis",
          "formats": [
            "UNIX_MS"
          ],
          "target_field": "@timestamp"
        }
      },
      {
        "rename": {
          "tag": "rename_logstash_log_loggerName_to_logstash_log_module",
          "field": "logstash.log.loggerName",
          "target_field": "logstash.log.module",
          "ignore_missing": true
        }
      },
      {
        "rename": {
          "tag": "rename_logstash_log_logEvent_message_to_message",
          "field": "logstash.log.logEvent.message",
          "target_field": "message",
          "ignore_missing": true
        }
      },
      {
        "rename": {
          "tag": "rename_logstash_log_logEvent_to_logstash_log_log_event",
          "field": "logstash.log.logEvent",
          "target_field": "logstash.log.log_event",
          "ignore_missing": true
        }
      },
      {
        "rename": {
          "tag": "rename_logstash_log_level_to_log_level",
          "field": "logstash.log.level",
          "target_field": "log.level",
          "ignore_missing": true
        }
      },
      {
        "rename": {
          "tag": "rename_logPath_to_log_file_path",
          "field": "logPath",
          "target_field": "log.file.path",
          "ignore_missing": true
        }
      },
      {
        "script": {
          "tag": "convert_logstash_log_log_event_action_to_string",
          "description": "Convert logstash.log.log_event.action elements to string.",
          "if": "ctx?.logstash?.log?.log_event?.action instanceof List",
          "lang": "painless",
          "source": """def items = [];
ctx.logstash.log.log_event.action.forEach(v -> {
    items.add(v.toString());
});
ctx.logstash.log.log_event.action = items;
"""
        }
      },
      {
        "script": {
          "tag": "set_event_type",
          "lang": "painless",
          "source": """def errorLevels = ["ERROR", "FATAL"]; if (ctx?.log?.level != null) {
  if (errorLevels.contains(ctx.log.level)) {
    ctx.event.type = ["error"];
  } else {
    ctx.event.type = ["info"];
  }
}"""
        }
      },
      {
        "copy": {
          "tag": "copy_timestamp_to_event_created",
          "source_field": "@timestamp",
          "target_field": "event.created",
          "override_target": true,
          "ignore_missing": true
        }
      },
      {
        "copy": {
          "tag": "copy_service_ip_to_host_ip",
          "source_field": "service.ip",
          "target_field": "host.ip",
          "override_target": true,
          "ignore_missing": true
        }
      },
      {
        "copy": {
          "tag": "copy_agent_host_to_host_name",
          "source_field": "agent.host",
          "target_field": "host.name",
          "override_target": true,
          "ignore_missing": true
        }
      }
    ],
    "on_failure": [
      {
        "append": {
          "field": "error.message",
          "value": "Processor \"{{{ _ingest.on_failure_processor_type }}}\" with tag \"{{{ _ingest.on_failure_processor_tag }}}\" in pipeline \"{{{ _ingest.on_failure_pipeline }}}\" failed with message \"{{{ _ingest.on_failure_message }}}\""
        }
      },
      {
        "set": {
          "field": "event.kind",
          "value": "pipeline_error"
        }
      },
      {
        "append": {
          "field": "tags",
          "value": "preserve_original_event",
          "allow_duplicates": false
        }
      }
    ]
  }

4.3 索引模板#

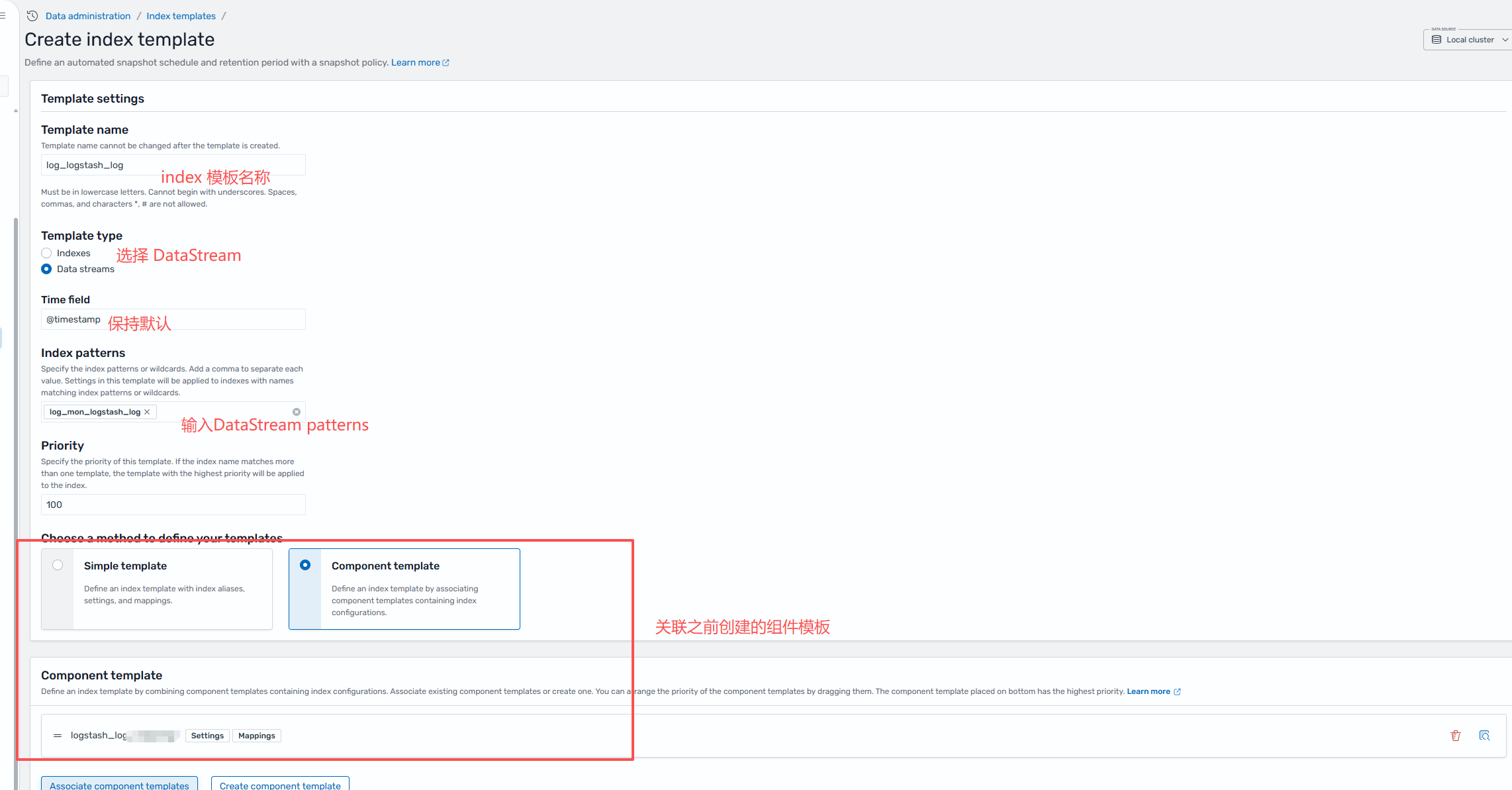

创建索引模板

五、Logstash日志采集与验证#

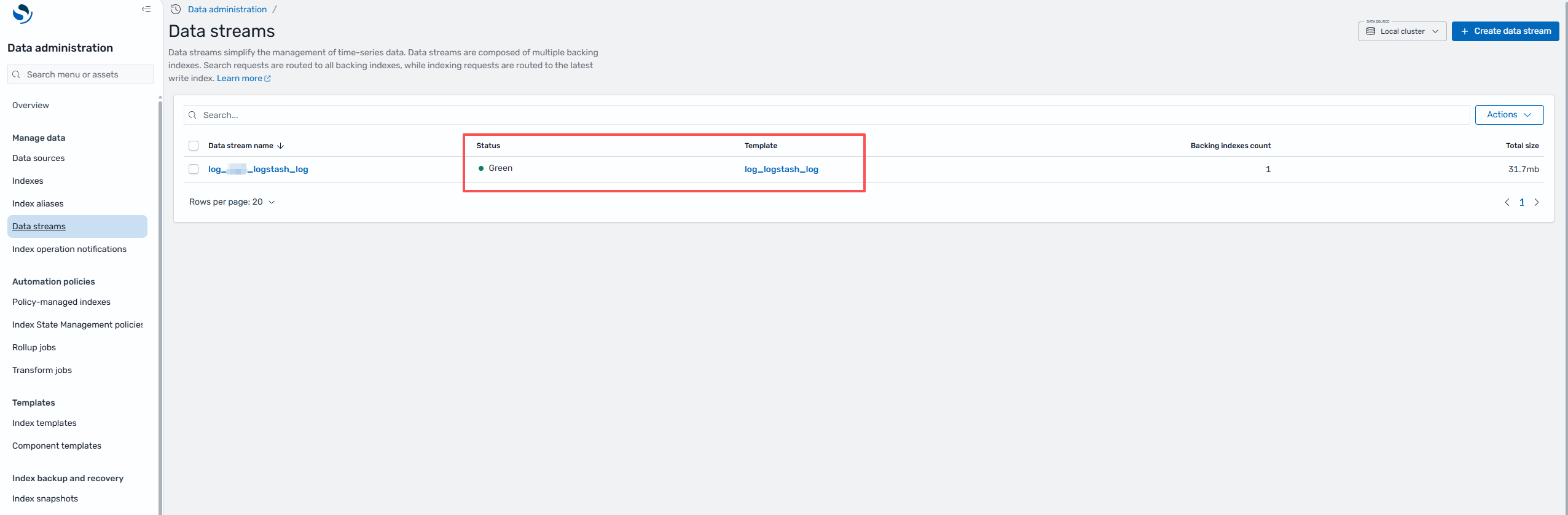

完成 ECS 标准化配置后，启动 Fluent Bit 采集服务，日志将根据已有索引模板自动创建 DataStream，并调用 Ingest Pipeline 进行数据处理。

flowchart LR
    subgraph Raw["原始 JSON 日志"]
        A["@timestamp\nlevel\nloggerName\nmessage\nlogEvent\ntimeMillis\nthread"]
    end

    subgraph FluentBit["Fluent Bit Filter"]
        B["Modify: 注入 agent.name\nagent.version"]
    end

    subgraph Pipeline["OpenSearch Ingest Pipeline"]
        C["Rename: 字段重映射"]
        D["Convert: 类型转换"]
        E["Lowercase: 级别标准化"]
    end

    subgraph ECS["ECS 标准化输出 DataStream"]
        F["@timestamp → date\nlog.level → keyword\nlog.logger → keyword\nmessage → text"]
    end

    A --> B --> C --> D --> E --> F

5.1 启动日志采集服务#

# 启动 Fluent Bit
sudo systemctl start fluent-bit

# 查看状态
sudo systemctl status fluent-bit

# 查看日志
sudo journalctl -u fluent-bit -f --since "10 min ago"

# 健康检查
curl http://127.0.0.1:2020/

5.2 查看 DataStream#

如果一切正常，此时应该会自动创建 DataStream

DataStream

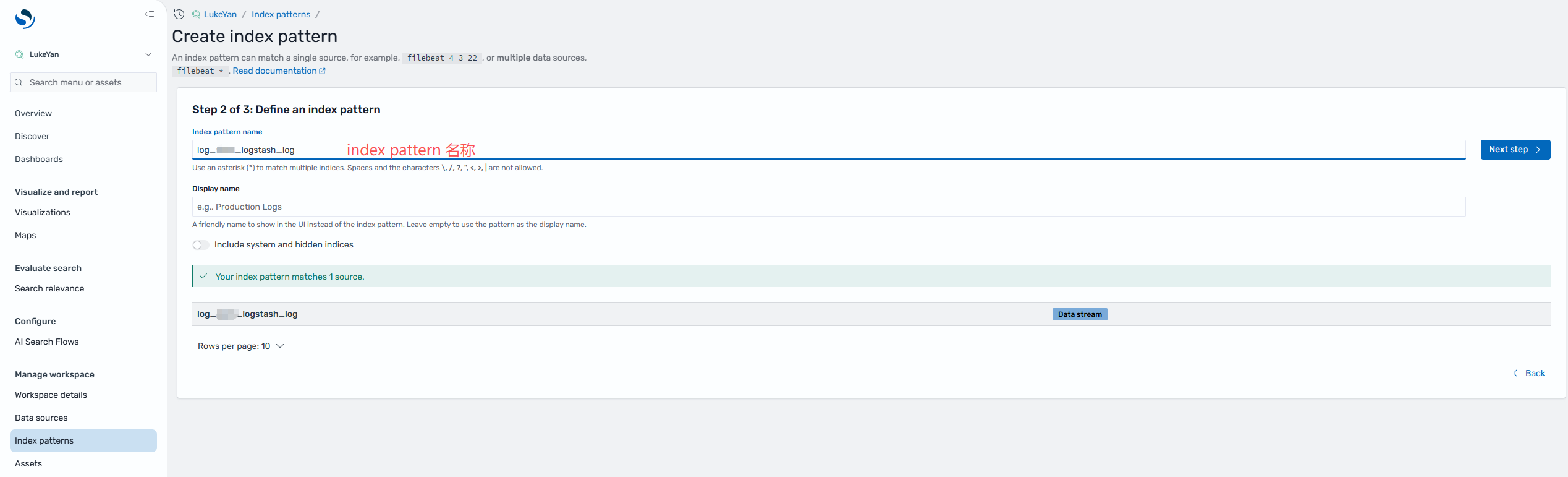

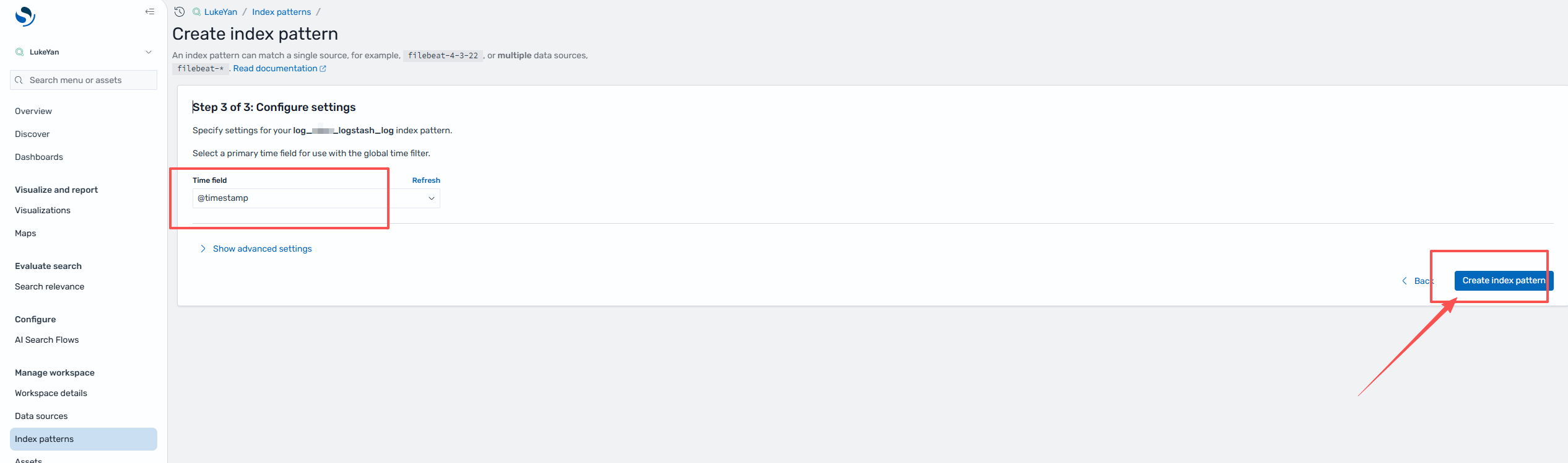

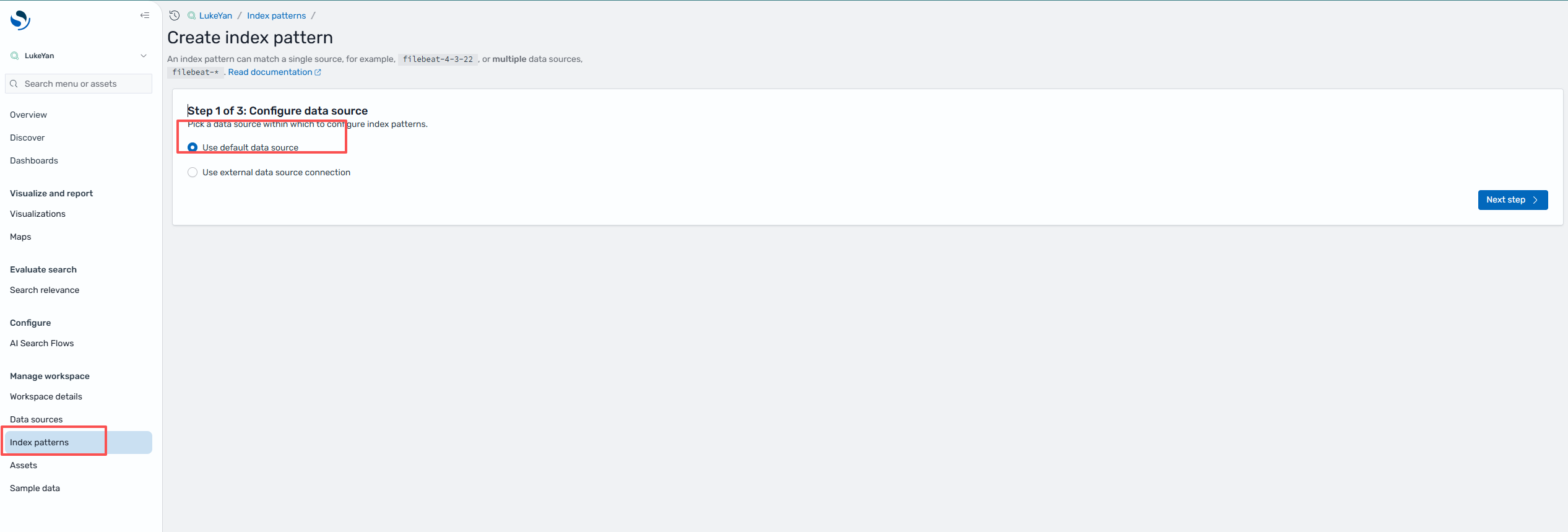

5.3 在 Dashboards 中创建 Index Pattern#

5.4 在 Dashboards 中 Discover 查看日志数据#

六、为什么选择 Data Stream 而非传统 Index？#

监控日志作为典型的时序数据（Time-series Data），传统的 “每日新建索引” 模式维护成本高，且不利于字段类型的动态演进。本方案完全拥抱 OpenSearch 原生的 Data Stream（数据流） 特性。

Data Stream 简化并规范了这一流程，强制实施最适合时序数据的架构设计：**专为 append-only 数据设计，并确保每个文档包含时间戳字段 **。

Data Stream 内部结构#

一个 Data Stream 在内部由多个 backing index 组成：

Search 请求：自动路由到所有 backing index，实现统一查询
Indexing 请求：自动路由到最新的 write backing index
ISM 策略：可自动化处理索引 rollover 或删除

传统 Index 与 Data Stream 核心对比#

对比维度	传统 Index + Alias	Data Stream
写入模式	可更新/删除任意文档，存在误操作风险	强制 append-only，防止误修改历史数据
内部结构	单索引或多个独立索引	自动管理多个 backing index，对外统一命名
查询路由	需使用通配符 `logs-*` 匹配多个索引	查询自动路由到所有 backing index
时间戳要求	无强制要求	强制每个文档包含 `@timestamp` 字段
数据安全性	可能意外更新/删除历史数据	append-only 机制保障历史数据不可变

Logstash 日志场景的适配性#

Logstash 日志是典型的时序数据，其特征与 Data Stream 的设计目标完美契合：

只增不改：日志产生后无需更新或删除
持续增长：日志数据量随时间快速增长
按时间查询：90% 以上的查询基于时间范围过滤
需要自动化运维：希望自动处理索引轮转和旧数据清理

七、 ISM 自动化生命周期（Index State Management）#

为应对海量监控日志带来的容量压力，设计符合工业规范的滚动退役策略。具体策略可根据自己的实际业务场景设置即可，下面为举例说明。

flowchart LR
    subgraph Hot["🔥 Hot 阶段 (1-3天)"]
        H1["高频写入与检索"]
        H2["NVMe SSD 存储"]
        H3["1 个副本"]
        H4["Rollover: 50GB 或 1天"]
    end

    subgraph Warm["⚡ Warm 阶段 (4-7天)"]
        W1["只读索引"]
        W2["Force Merge 合并段"]
        W3["普通 HDD 存储"]
    end

    subgraph Cold["❄️ Cold 阶段 (8-30天)"]
        C1["副本数降为 0"]
        C2["深度压缩"]
        C3["低频安全审计"]
    end

    subgraph Delete["🗑️ Delete 阶段 (>30天)"]
        D1["自动物理删除"]
    end

    Hot --> Warm --> Cold --> Delete

7.1 创建ISM#

PUT _plugins/_ism/policies/logstash_log_policy
{
  "policy": {
    "policy_id": "logstash_log_policy",
    "description": "Logstash 监控日志生命周期管理",
    "default_state": "hot",
    "states": [
      {
        "name": "hot",
        "actions": [
            {
                "retry": {
                    "count": 3,
                    "backoff": "exponential",
                    "delay": "1m"
                },
                "allocation": {
                    "require": {
                        "temp": "hot"
                    },
                    "include": {},
                    "exclude": {},
                    "wait_for": false
                }
            },
            {
                "retry": {
                    "count": 3,
                    "backoff": "exponential",
                    "delay": "1m"
                },
                "rollover": {
                    "min_size": "50gb",
                    "min_index_age": "1d",
                    "copy_alias": false
                }
            }
        ],
        "transitions": [
          {
            "state_name": "warm",
            "conditions": {
              "min_index_age": "1d"
            }
          }
        ]
      },
      {
        "name": "warm",
        "actions": [
           {
               "retry": {
                   "count": 3,
                   "backoff": "exponential",
                   "delay": "1m"
               },
               "allocation": {
                   "require": {
                       "temp": "warm"
                   },
                   "include": {},
                   "exclude": {},
                   "wait_for": false
               }
           },
           {
               "retry": {
                   "count": 3,
                   "backoff": "exponential",
                   "delay": "1m"
               },
               "force_merge": {
                   "max_num_segments": 1
               }
           }
        ],
        "transitions": [
          {
            "state_name": "cold",
            "conditions": {
              "min_index_age": "7d"
            }
          }
        ]
      },
      {
        "name": "cold",
        "actions": [
           {
               "retry": {
                   "count": 3,
                   "backoff": "exponential",
                   "delay": "1m"
               },
               "allocation": {
                   "require": {
                       "temp": "cold"
                   },
                   "include": {},
                   "exclude": {},
                   "wait_for": false
               }
           },
           {
               "retry": {
                   "count": 3,
                   "backoff": "exponential",
                   "delay": "1m"
               },
               "replica_count": {
                   "number_of_replicas": 0
               }
           }
        ],
        "transitions": [
          {
            "state_name": "delete",
            "conditions": {
              "min_index_age": "30d"
            }
          }
        ]
      },
      {
        "name": "delete",
        "actions": [
          {
            "delete": {}
          }
        ]
      }
    ]
  }
}

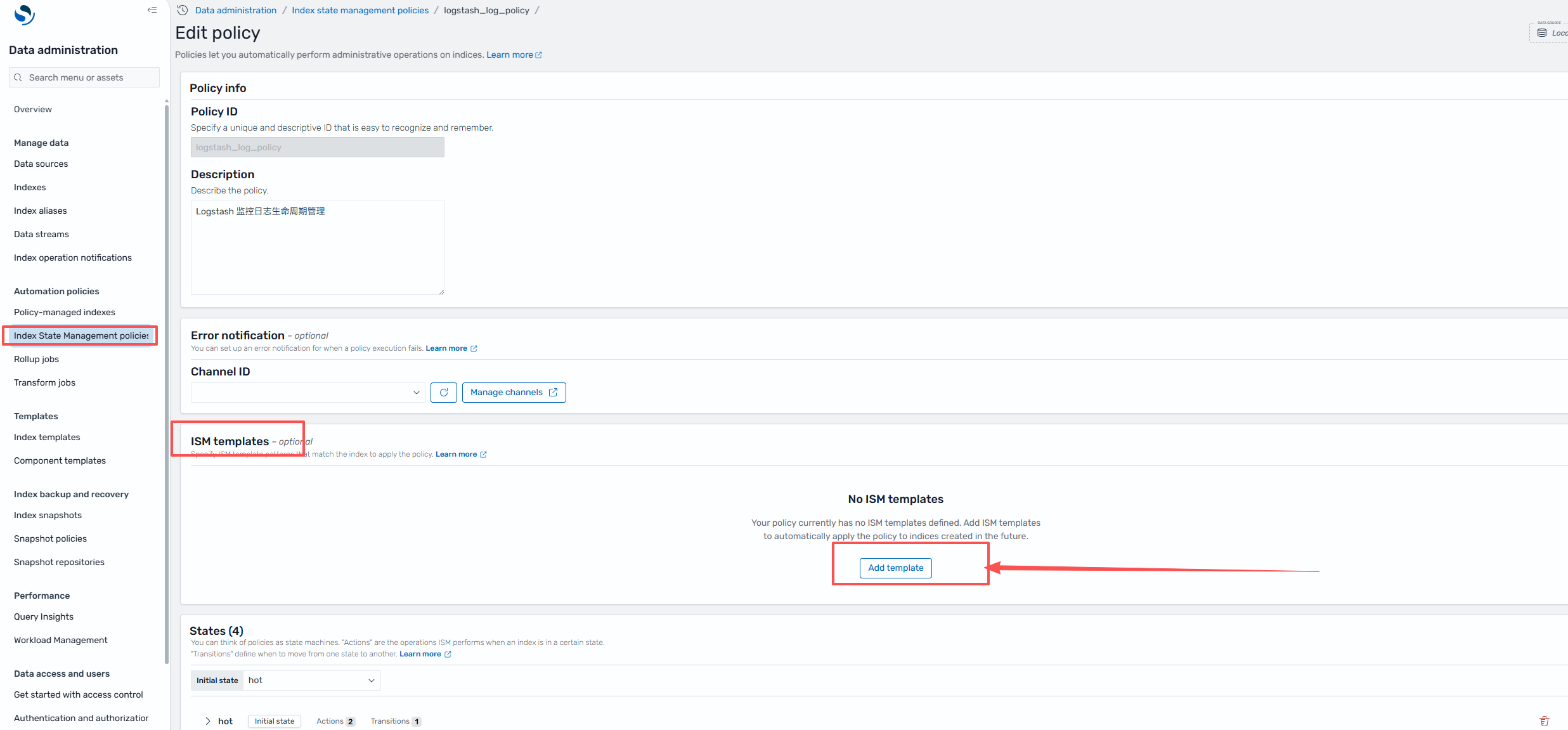

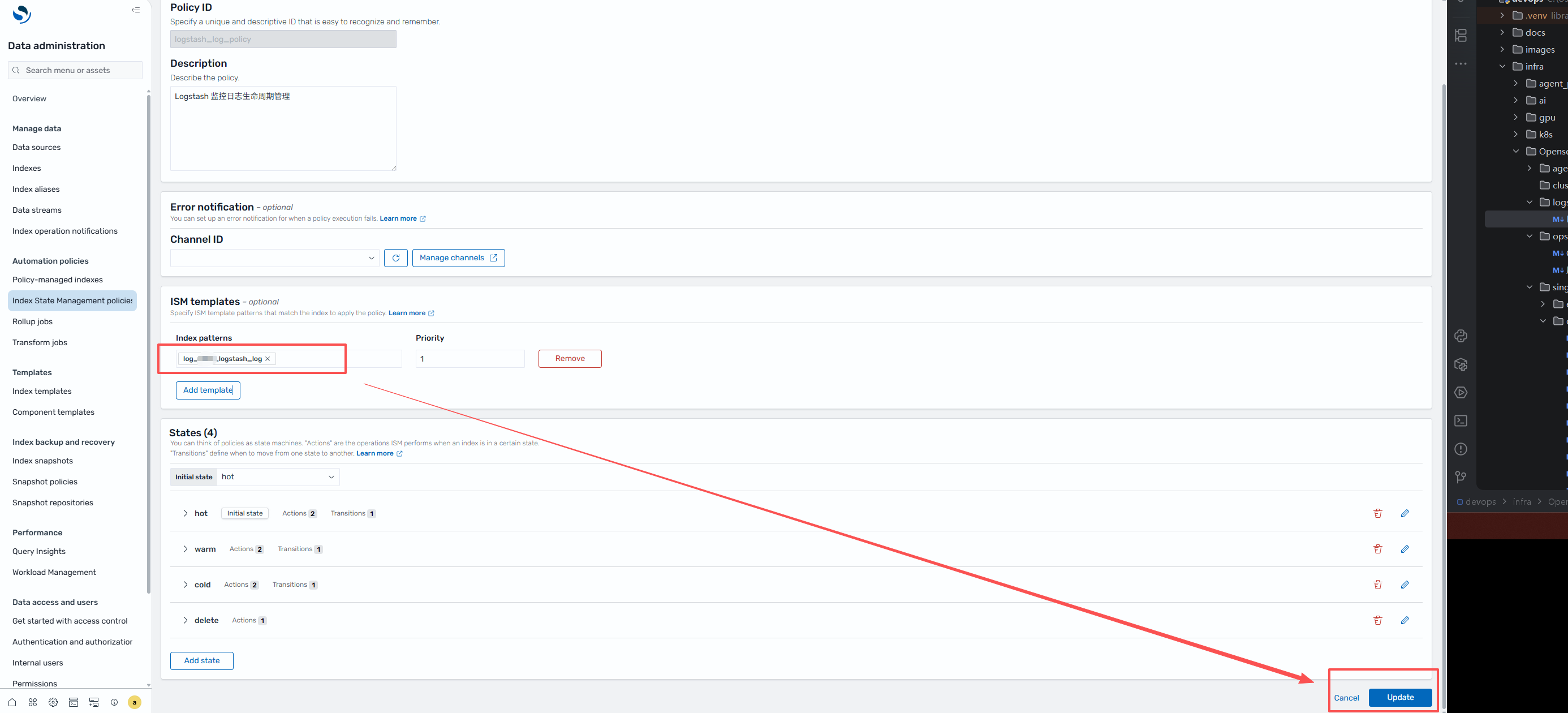

7.2 绑定索引模板#

#

结语#

通过本篇方案，我们完成了 Logstash 日志监控体系中最核心的 “基础设施铺设”。至此，Logstash 的自身日志已经源源不断地以标准 ECS 规范、极低的资源损耗落地于 OpenSearch 数据流中。

这套方案的核心价值在于：

旁路轻量化：采用 Fluent Bit 替代 Logstash 自采集，避免循环依赖和性能污染

结构化采集：强制 Logstash 输出 JSON 日志，彻底告别多行正则解析

标准化存储：通过 Ingest Pipeline 对齐 ECS 规范，为后续的可视化、告警、审计打下坚实基础

自动化运维：Data Stream + ISM 实现索引全生命周期自动化管理，降低运维负担

下一步行动建议：

在后续实践中，我们可以基于这套标准的 ECS 数据流，进一步构建自定义告警规则、日志分析 Dashboard，以及自动化故障诊断流程。
